What Is a Dead End Clamp?

A Dead End Clamp is also called an anchor clamp or tension clamp. It helps you hold and end cables in overhead line systems. You use this tool to keep wires or conductors in place. It works where lines stop or turn in a new direction.

• These clamps are temporary tools that grip wires tightly.
• They help keep transmission lines strong and working well.
  You need a Dead End Clamp for strong support and steady electricity in power and utility jobs.

Key Takeaways

• Dead End Clamps hold cables tightly in overhead lines. They stop cables from slipping and help keep people safe. These clamps are simple to put on and do not need special tools. This saves time and lowers work costs. The right Dead End Clamp keeps cables safe from bad weather. It also helps cables last longer. There are many types of Dead End Clamps for different uses. Pick the one that matches what you need. Dead End Clamps follow strict safety rules. This makes sure they work well in power and utility jobs.

Dead End Clamp Function

How It Works

A Dead End Clamp holds and ends cables in overhead lines. The clamp squeezes the cable tightly. It keeps the cable in place when the line stops or turns. Most clamps have a wedge shape. This shape makes the clamp grip harder when you pull the cable. The clamp gets tighter by itself when under tension. You do not need special tools for many clamps. For example, the JS-22T clamp goes right on wire strand ropes. It uses hot-dip galvanized steel to last longer. The steel wire helps stop failure and keeps the clamp strong.

Tip: Dead End Clamps are fast to install. This saves time and lowers work costs.

Dead End Clamps can handle strong winds, ice, and shaking. Their design spreads the pull along the cable. This helps stop weak spots that could break the cable. The clamps fit many cable sizes and types. They work for lots of different jobs. You see them in overhead power lines, factories, green energy, and phone lines.

Here are the main features that help Dead End Clamps work:

• Wedge-shaped grip gives strong holding power.
• Self-tightening keeps cables safe.
• Tough, weather-proof materials last longer.
• Easy to install saves you time.
• Even load spread protects the cable.

Main Purpose

A Dead End Clamp anchors and ends conductors at the end of a line. This clamp is a strong anchor point. It keeps the cable steady in overhead power and utility networks. You need this steadiness to stop slipping and keep safe, solid connections.

Dead End Clamps are important for holding aerial bundled conductors. They stop cables from moving and spread out the pull. This lowers stress and helps cables last longer. You trust these clamps to keep your electrical system safe and working well.

You should know Dead End Clamps meet strict industry rules. These include ISO 9001, OSHA, ASME, ASTM, and ANSI certifications. These rules make sure the clamps are safe and work well for your jobs.

Common problems are slipping, weather damage, and bad load spread. Makers use strong grips and tough materials to stop these issues. Some clamps even have smart sensors to check them in real time.

Note: Using the right Dead End Clamp helps stop cable problems and keeps your system working well.

Features & Parts

Key Components

A Dead End Clamp has many important parts. Each part does a special job. These jobs help the clamp hold cables tight and safe. Here is a table that shows the main parts and what they do:

These clamps support insulated aerial bundle cables. You do not need special tools to put them on. You use them at the start or end of a line. You also use them when the line turns at sharp angles.

Defining Characteristics

Dead End Clamps are special because of their smart design and strong materials. These features help them handle heavy loads and bad weather. Here are some things that make them different:

• The clamp body uses strong aluminum alloy for support.
• The wedge part is made from plastic that resists sunlight. This keeps cables safe.
• Bail loops use stainless or galvanized steel for strong anchoring.
• Bolts and nuts let you change the clamp for different cable sizes.

Materials are important for how well the clamp works. Aluminum is light and does not rust easily. Galvanized steel is strong. Copper helps electricity flow. Polymeric materials help with insulation. Zinc coatings protect against rust.

Tip: Polymeric materials and stainless steel help Dead End Clamps last longer in places near the ocean or in risky areas.

These features help the clamp stand up to strong winds, ice, and shaking. Your cables stay safe and supported, even in tough places.

Types of Dead End Clamps

Common Types

You will find many types of dead end clamps in the field. Each type has a special job. The table below shows the most common types and what they do:

You can pick the right type based on your job. For example, use strain clamps when you need strong support. Choose wedge dead ends if you want fast and easy installation. If you work in a place with lots of wind, vibration dampening dead ends help protect your cables.

Tip: Always match the clamp type to your cable and the tension level. This keeps your system safe and working well.

Specific Models (ASO, ASOS, HCS, HCDS, HDSO)

You will also see special models of dead end clamps. These models fit different cable sizes and uses. Here are some common ones:

• ASO: You use this model for standard overhead bundled cables. It gives strong grip and easy setup.
• ASOS: This model works well with insulated cables. It protects the cable and keeps it steady.
• HCS: You pick this model for heavy-duty jobs. It handles high tension and tough weather.
• HCDS: This model fits medium to large cables. It spreads the load and stops cable damage.
• HDSO: You use this for special utility lines. It gives extra support where you need it most.

Each model has its own strengths. For example, HCS models work best in places with strong winds or heavy ice. ASOS models help when you need to protect cable insulation. You can choose the right Dead End Clamp model to match your project needs.

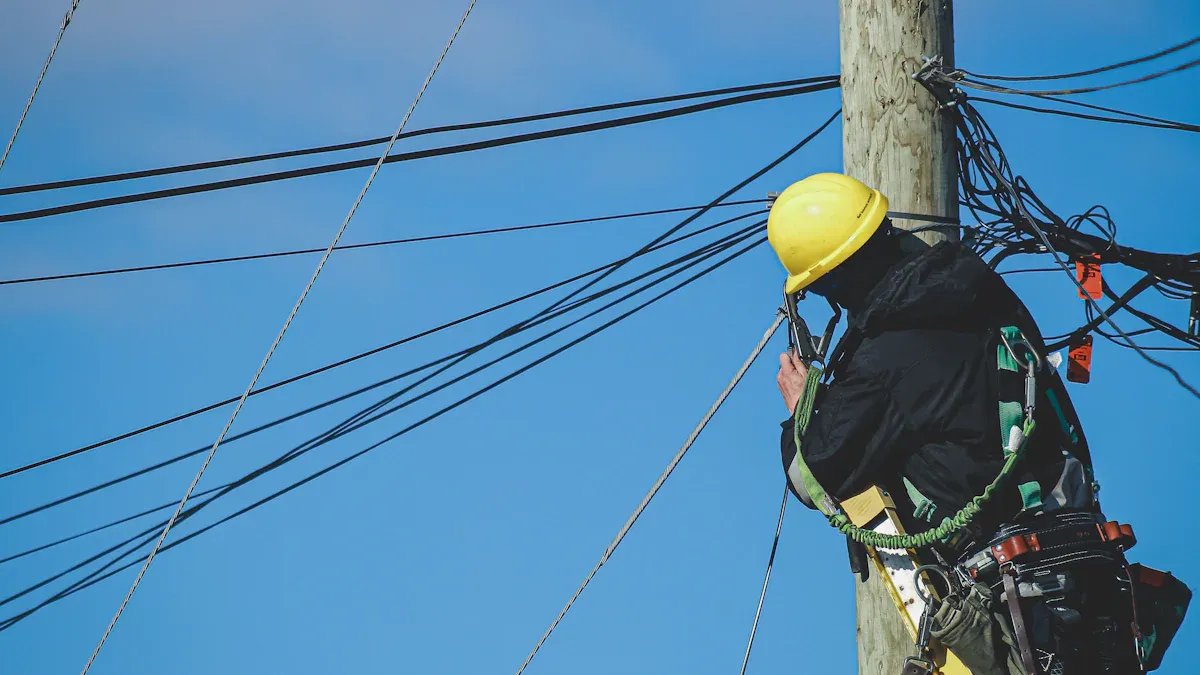

Applications

Power Distribution

Dead end clamps help hold conductors at the end of a line. They also work when the line turns a corner. These clamps keep cables tight and safe. To use one, you put the conductor in the jaws. Then you tighten it with special parts. This lets the clamp move the pull from the cable to the pole. You see these clamps where wind or ice can pull on wires. They help keep power lines safe and working.

• You hold conductors at the end of lines.
• You keep cables safe at sharp turns.
• You support wires where there is lots of tension.
• You stop overhead lines from sagging or moving.

Note: If you install dead end clamps the right way, you stop cable damage and keep your power system strong.

Utility & Telecom

Dead end clamps are used in utility and telecom jobs. They hold cables for phone, internet, and other services. These clamps work in all kinds of weather and setups. The table below shows how they help in utility and telecom work:

You pick these clamps because they hold cables tight and stop sagging. They also make cable work easier. You spend less on repairs and keep workers and people safe.

Other Uses

Dead end clamps are used in many places. You see them in factories, solar farms, and street lights. These clamps help you keep cables neat and safe. You can use them for:

• Holding cables in green energy projects.
• Keeping wires safe in factories.
• Managing cables for outdoor lights.
• Holding wires in cities or the country.

You choose dead end clamps because they keep cables tight and spread out the pull. They work in bad weather. They help you build safe and strong cable systems in many jobs.

Importance & Benefits

Why They Matter

Every overhead line system needs strong cable ends. A Dead End Clamp helps keep cables safe. If you do not use one, cables might slip or break. This can hurt people or damage equipment. These clamps help you follow safety rules. They also keep your system working well. If you skip the right clamp, big problems can happen. The table below shows what could go wrong if you do not use the right cable clamp:

Note: The right clamp keeps cables safe and protects your team.

Key Advantages

Dead End Clamps give you many good things. They use smart shapes and strong stuff to hold cables tight. The table below shows the best features that make these clamps helpful:

You save time and money when you use these clamps. Your system is safer and works better. Picking the right clamp protects your cables, your machines, and your workers. 😊

You use a Dead End Clamp to hold cables tight and safe in overhead lines. These clamps help power and utility jobs stay strong and work well.

• They keep cables from moving and protect them from bad weather.
• Strong materials like ductile iron help them last a long time.

When you pick a clamp, think about these things:

Some new clamps have smart sensors that check cable health. You should always pick the right clamp for your job. This keeps your system safe and working well. 😊

FAQ

What cables can you use with a dead end clamp?

You can use dead end clamps with insulated cables, bare conductors, and aerial bundled cables. Always check the clamp size and type before you install it.

How do you install a dead end clamp?

You slide the cable into the clamp, then secure it by tightening the wedge or bolts. Most clamps do not need special tools. Always follow the instructions for your clamp model.

Can dead end clamps handle bad weather?

Yes, dead end clamps use strong materials like aluminum and stainless steel. These materials resist rust, sunlight, and rain. Your cables stay safe in tough weather.

Tip: Pick clamps with weatherproof features for outdoor jobs.

What problems can you avoid by using dead end clamps?

You stop cable slipping, sagging, and breaking. You also lower repair costs and keep your system safe. Dead end clamps help you meet safety rules.
