The difference between pin type and suspension type insulator

You can see a big difference between a pin type insulator and a suspension insulator when you look at power lines. A pin type insulator works well for voltages up to 33 kV. It is good for lower voltage lines and is simple to use. Suspension insulators are used for higher voltages. They use a chain of discs to hold wires over long distances. You must choose the right insulator for your voltage and line needs. This helps keep things safe and working well.

Key Takeaways

• Pin type insulators work best for voltages up to 33 kV. They are simple to put in place and good for lines with lower voltage.
• Suspension insulators are made for higher voltages, starting at 66 kV. They have many discs that you can add or remove for different voltage needs.
• Picking the right insulator is very important for safety and how well things work. Always choose the insulator that fits your line’s voltage and the weather around it.
• Both types of insulators need regular checks and care. This stops problems like flashover and keeps them working well for a long time.
• You should buy from a trusted supplier to get good insulators and help. This can make repairs cost less and help your project work better.

Types of insulators: Pin vs Suspension

Comparison Table

You need to look at different insulators before you pick one for your power line job. The table below shows how pin type insulator and suspension insulators are not the same. It compares their structure, voltage range, how you install them, and where you use them.

Tip: Always pick the insulator that matches the voltage and the job. This stops problems like flashover and keeps your system safe.

Key Features

When you check pin insulator and suspension insulators, you notice they work in different ways and places.

• Pin type insulator is best for lower voltage lines. You put it right on the pole or cross-arm. This makes it easy and quick to install.
• Suspension insulators are used for higher voltages. You link several disc units together in a chain. You can change the number of discs for different voltages and dirty conditions.
• New electrical insulator technology uses stronger materials. Coatings like RTV silicone help them work better in tough weather.
• Creepage distance is important. Suspension insulators let you make this distance longer. This helps stop electrical faults when it is wet or dirty.

You should check if the supplier can give you good insulators. A good supplier keeps your project steady and cuts down on repairs. Make sure the supplier can meet your needs for both quality and delivery.

If you know these points, you can pick the right insulator for your project. This keeps your system safe and working well for a long time.

Differences between pin type insulator and suspension insulators

Construction

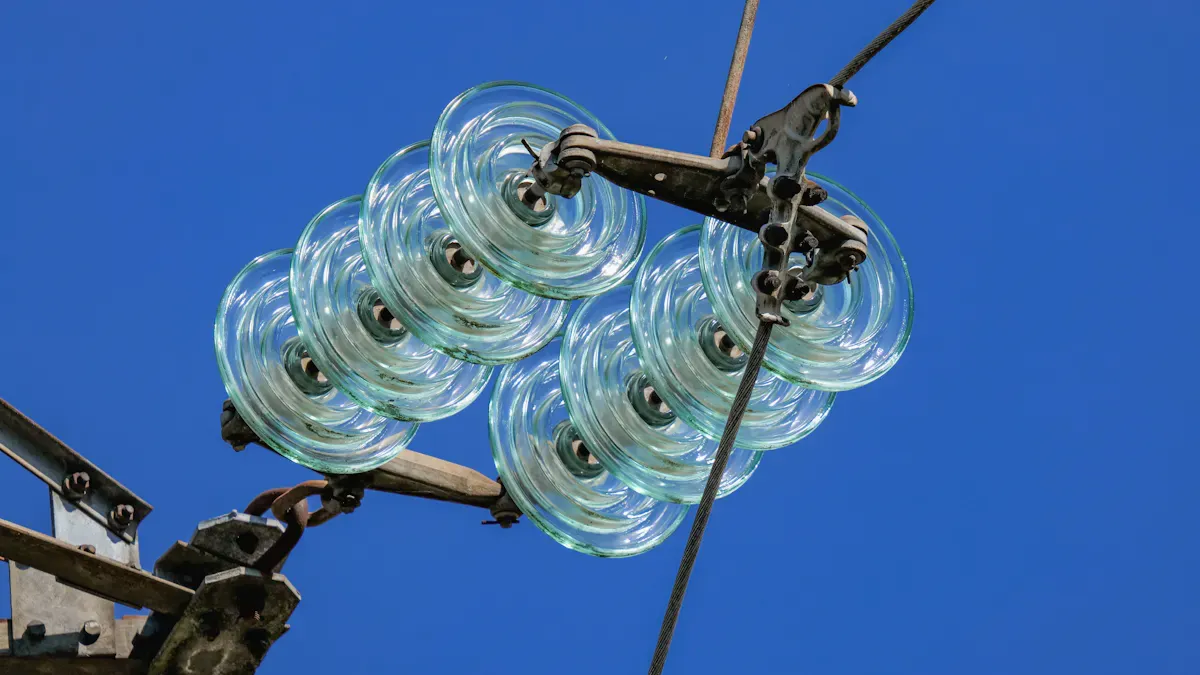

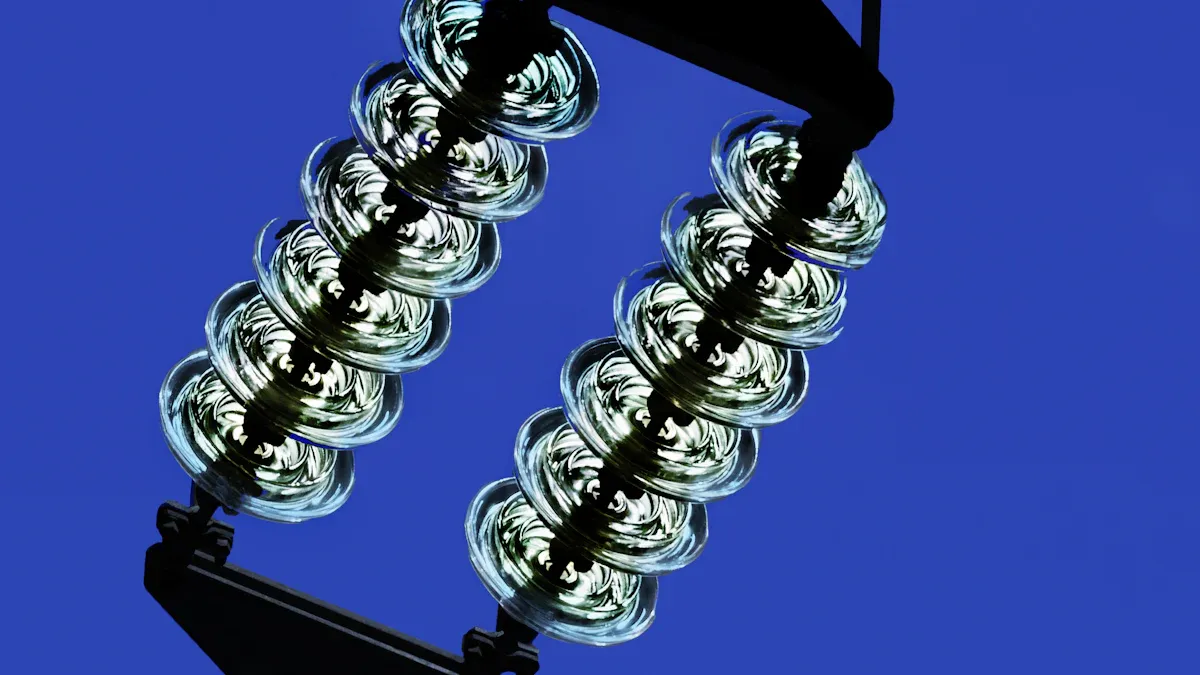

There are clear ways these insulators are built. Pin type insulator is made from one piece. It uses porcelain or glass. It has an umbrella skirt to keep off water and dirt. Suspension insulators have many disks in a chain. These disks are joined together. They can be made from porcelain, glass, or composite. The chain lets them handle moving loads and weather changes.

Installation

Pin type insulator goes right on the support. You put the metal pin on the pole or cross-arm. Then you connect the wire. Suspension insulators need more steps. You join each disk with metal rods. This makes a chain. You hang the chain from the cross-arm. Then you attach the wire. You must check space and look at all parts.

1. Check safety and look at the insulators.
2. Pick the right spot on the line.
3. Put the pin type insulator on the structure.
4. Connect wires to the insulator.
5. For suspension insulators, join disks with rods.
6. Make sure there is enough space.
7. Check all connections.
8. Do regular checks.

Note: You need to do these steps to keep your project safe and working well.

Voltage Capacity

You must use the right insulator for your line’s voltage. Pin type insulator works up to 33 kV. Suspension insulators are for more than 33 kV. You can add more disks to handle higher voltages.

• Pin type insulator is for up to 33 kV.
• Suspension insulators are for above 33 kV.

Applications

Pin type insulator is used for distribution and telecommunication lines. It is good for lower voltage places. Suspension insulators are used in high-voltage systems. They hold wires over long distances and keep power safe. Glass is used more for transmission suspension strings. Porcelain is common for station posts. Polymer insulators are used for many jobs, from distribution to transmission.

• Pin type insulator: Distribution lines, telecommunication lines.
• Suspension insulators: High-voltage transmission lines, EHV, UHV lines.

Tip: Pick the insulator that fits your voltage and line length.

Mechanical Strength

You need to think about strength for your project. Pin type insulator can take medium loads. Suspension insulators can take heavy loads and changing conditions. Problems can happen if there is strong wind or ice. Electrical problems can come from flashover or puncture. Pollution and damage can also cause trouble.

• Insulators can fail from strength or electricity.
• Strength problems come from heavy loads, wind, or ice.
• Electrical problems are flashover and puncture.
• Pollution and damage can make insulators worse.

Cost and Maintenance

Pin type insulator costs less for small jobs. It is easy to take care of. Suspension insulators cost more but work better for high-voltage lines. You need to check suspension insulators often, especially in tough places. Regular checks keep your system working and stop problems.

Callout: Work with a supplier who gives good insulators and helps with checks. This keeps your project steady and working well.

The kind of insulator you pick changes your project’s cost, safety, and how well it works. You must match the insulator to your voltage and job. You also need to see if your supplier can give good products and help you.

Pros and Cons of pin type insulator and suspension insulators

Pin Type Insulator: Pros and Cons

You should look at the good and bad sides of each insulator before you pick one. Pin type insulator has a simple shape. It works well for many power jobs. The table below shows the main points:

Pin insulator gives steady performance in places with medium voltage. It also costs less to install, so you save money. But it cannot be used for high voltages. You need to check it often to stop damage from weather or dirt. If your supplier gives good products and help, you can fix problems faster and keep your lines safe.

Suspension Insulators: Pros and Cons

Suspension insulators are better for high-voltage lines. You can add more discs to fit the voltage you need. Here are the main good and bad points:

• You can use these insulators for high-voltage lines by adding more discs.
• Each disc gives more insulation, so you can match different voltages.
• They work well in tough or dirty places.
• You can change single units, which makes repairs cheaper.
• These insulators give both electrical insulation and strong support.

Note: You need to clean and check them often, especially in dirty places. Porcelain types can break if you handle them roughly.

• Suspension insulators cost more than pin types, but they work better for long power lines.
• You may pay more if you need to clean them often.
• A good supplier helps you get quality insulators and support for repairs.

You should pick the insulator that fits your voltage and area. This helps you stop problems and keeps your project working well.

Choosing the right insulator

Selection Criteria

When you pick an insulator, you need to think about a few things. Every project is different, so you must choose what fits your needs. Here are the main things to look at:

• Voltage rating: Make sure the insulator can handle your line’s voltage.
• Design and construction: See if the shape and build fit your setup.
• Application requirements: Think about what kind of line you have.
• Pollution level: If there is a lot of pollution, use types that resist it better, like polymer types.
• Mechanical strength: Check the weight of wires and if wind or ice could be a problem.
• Environmental conditions: Humidity, salt, and dust can change how insulators work.
• Material: Pick materials that work for your weather and voltage.
• Standards and certifications: Look for products that meet rules like IEC 60071 and IEC 60815.
• Manufacturer reputation: Work with suppliers who have done a good job before.

You can use this table to compare important things:

Practical Guidance

You should match the insulator type to your voltage and where you use it. Use pin type insulator for lines up to 33 kV. Pick suspension insulators for high-voltage lines or long distances. In dirty or coastal places, polymer electrical insulator works well because it keeps out dirt and water. These insulators are light and strong, so they help in bad weather.

The supplier you pick also matters for your project. A good supplier like Conwell gives strong support, ISO-based factories, and a CNAS lab. Their engineers and quality checks make sure you get good suspension insulators every time. This help means you do not need as many repairs and your system works better.

Tip: Always check if the supplier tests their products and gives support. Good suppliers help you stop big problems and keep your project safe.

If you follow these steps, you can pick the right insulator for your voltage, weather, and money. This helps you build a safe and steady power system.

Pin type and suspension insulators are built differently and used in different ways. Pin type is good for lower voltages and easy setups. Suspension insulators work for higher voltages and hard weather. Picking the right insulator for your voltage and job keeps your system safe and working well.

Pick the best insulator and a good supplier. This makes your project last longer and work better.

FAQ

What makes pin type and suspension type insulators different in structure?

Pin type insulators are one solid piece on poles. Suspension type insulators have discs linked in a chain. The chain lets you change for different voltages and line needs.

When should you choose a suspension type insulator?

Pick suspension type insulators for lines needing more voltage insulation. This design is best for long lines and harsh weather. You can add discs for higher voltage or more pollution.

How does the choice of insulator affect project costs?

Pin type insulators cost less for short, low-voltage lines. Suspension type insulators cost more but work better for high-voltage or long lines. You save money on repairs if you use the right insulator.

Why does supplier capability matter for insulator projects?

A good supplier gives quality products, quick delivery, and support. This keeps your project moving and cuts down on delays. You avoid mistakes when you work with trusted partners.

What should you check before selecting an insulator for your line?

Check the voltage, line length, and environment. Look at strength and pollution level. Always ask your supplier for test reports and certifications before choosing.
