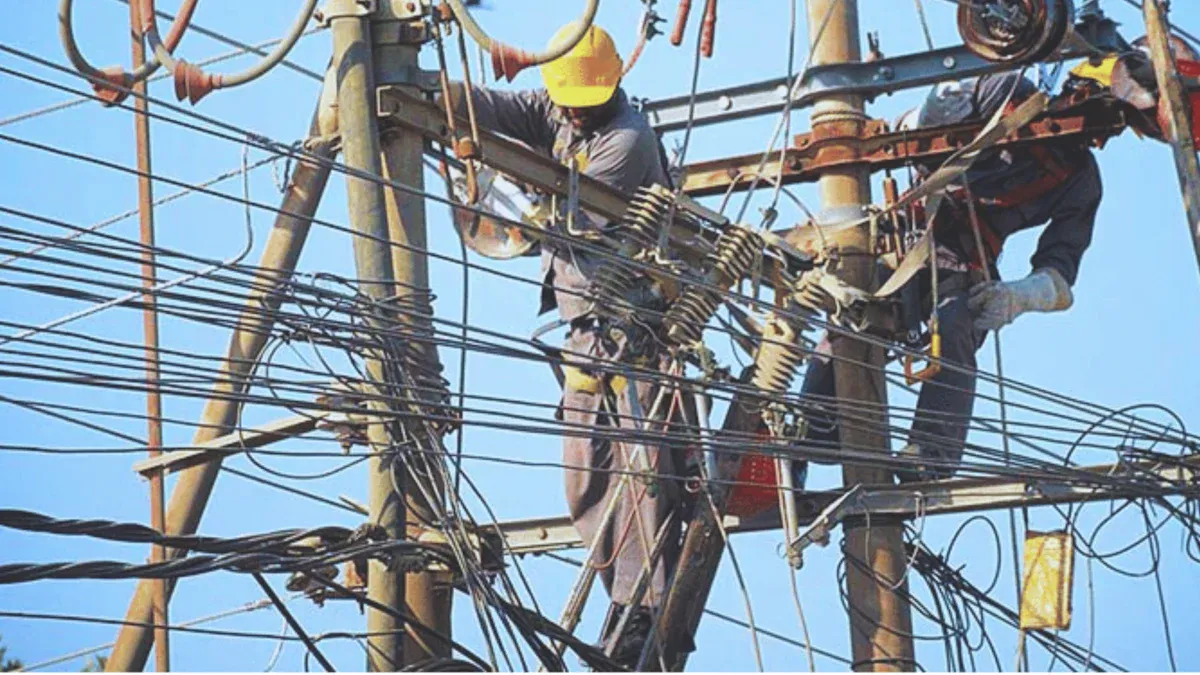

Function of Dead End Clamps in Overhead Power Lines

When you see overhead power lines, you may not notice the small but important parts that hold the wires. Dead End Clamps grip, support, and anchor the wires. This keeps the lines tight and safe. These clamps work well in bad weather. They help keep electricity safe. They also follow strict rules for the industry.

Key Takeaways

• Dead End Clamps hold power lines tightly. They keep wires in place and stop them from moving or drooping.
• Picking the right clamp makes power lines safer. It also helps the system work better and lowers the chance of blackouts.
• Checking and fixing clamps often helps them last longer. It also makes sure they work well, even in bad weather.
• There are different clamps, like compression and wedge clamps. Each type does a special job and should match the project.
• It is important to install clamps the right way. Following the maker’s rules helps avoid mistakes and keeps people safe.

What Are Dead End Clamps?

Definition and Purpose

You may wonder what keeps power lines steady and safe. Dead End Clamps do this important job. In electrical engineering, people also call them anchor or tension clamps. These clamps are hardware fittings that hold the ends of wires or cables in overhead line systems. You use them to fasten conductors to utility poles, towers, or other supports. This keeps the wires from moving or slipping, even when the weather changes.

Here are the main purposes of dead end clamps:

1. Mechanical Termination: You use these clamps to anchor the conductor to the tower. This keeps the line tight and straight.
2. Electrical Continuity: Many clamps help electricity flow without stopping. This means power can travel safely along the line.
3. Withstand Mechanical Stress: These clamps handle strong forces. They work well in long spans, sharp angles, or during storms.

Tip: When you choose the right clamp, you help the power line last longer and work better.

Role in Power Line Systems

Dead end clamps play a key role in overhead power lines. You use them to secure wires in place. This helps the power system stay safe and reliable. The clamps act as strong anchors at the end of each span. They keep the wires from sagging or snapping. You also find that these clamps work with other parts, like insulators and brackets. Together, they make sure the power lines stay in the right position and carry electricity where it is needed.

When you install dead end clamps, you help the whole system meet safety and performance standards. You make sure that the wires stay tight and do not move out of place. This keeps the power flowing to homes, schools, and businesses every day.

Functions of Dead End Clamps

Securing and Anchoring Conductors

You need strong hardware to keep power lines in place. Dead End Clamps grip the conductors and anchor them to poles or towers. This prevents the wires from slipping or moving, even when the weather changes quickly. The design of these clamps helps them hold the wires tightly under high tension.

Here is a table that shows the key features that help Dead End Clamps secure and anchor conductors:

When you use these clamps, you make sure the wires stay where they belong. This keeps the power line safe and working well.

Maintaining Tension and Alignment

You want power lines to stay straight and tight. If wires sag or move out of place, they can cause problems. Dead End Clamps help you keep the right tension in the wires. They transfer the force from the wire to the support structure, like a pole or tower. This stops the wires from drooping or snapping.

Note: When you use Dead End Clamps, you help prevent sagging and keep the wires lined up, even during storms or strong winds.

These clamps do more than just hold the wire. They spread out the pressure so the wire does not get damaged. You can use them with many types of cables, such as ACSR, copper, or aluminum. Here are some benefits you get from using Dead End Clamps:

• Hold full wire tension
• Prevent sagging or slippage
• Ensure stability under wind and extreme weather
• Fit multiple cable types
• Lower maintenance needs

When you install these clamps, you help the power lines stay safe and work well, even in tough weather.

Enhancing Safety and Reliability

You want your power system to be safe and reliable. Dead End Clamps play a big part in this. They keep the wires from moving or breaking, which lowers the risk of accidents. These clamps also help protect the wires from damage, especially when the weather is bad.

Field studies show that Dead End Clamps, along with other hardware, help reduce damage to conductors. They keep the power lines strong and working, even when the environment is harsh. When you use these clamps, you help make sure that electricity reaches homes and businesses without problems.

Tip: Regular checks and good installation help Dead End Clamps last longer and keep your power lines safe.

By choosing the right clamps and installing them well, you help your power system stay strong and reliable for years.

Dead End Clamps: Types

There are different clamps for holding wires on power lines. Each clamp has its own design. Some work better in certain places. Let’s learn about the main types and how they help keep power lines safe.

Compression Clamps

Compression clamps squeeze the wire tightly. You use special tools to close the clamp. This makes a strong grip that stays tight. These clamps are good for jobs that need strong, lasting support. You use them when you want the wire to stay in place for a long time.

Manufacturers say compression clamps are best for places needing a secure end. Hydraulic tools help you put these clamps on with the right force.

Wedge Clamps

Wedge clamps have a wedge part that pushes on the wire. When you pull the wire, the wedge gets tighter. This holds the wire in place. Wedge clamps are easy and quick to install. They work well where wires need to be held tightly.

You use wedge clamps for overhead lines that need strong ends. These clamps stop wires from slipping and keep them straight.

Bolted Clamps

Bolted clamps use bolts and nuts to lock the wire. You tighten the bolts so the wire does not move. Bolted clamps are simple to put on and adjust. You can use them for wires above ground or underground.

Bolted clamps follow rules like IEEE C135.64-2012 and IEEE C135.100-2024. These rules help you test and pick the right clamp for your job.

Application Differences

You need to choose the right clamp for each job. Here is a table to show where each type works best:

Tip: New clamps use strong aluminum and materials that do not rust. These features make clamps easier to install and help them last longer.

You can pick the best clamp by thinking about your needs and the weather. Dead End Clamps help keep power lines safe and working well.

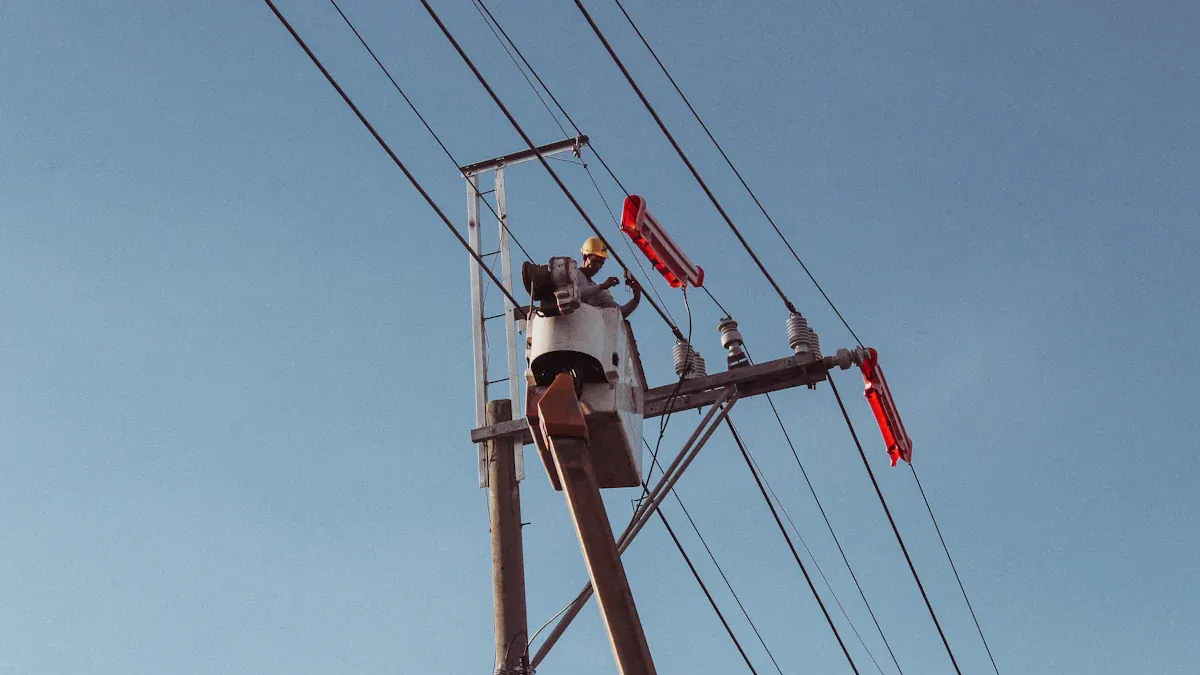

Dead End Clamps: Installation

Installation Steps

You must follow the right steps to install Dead End Clamps. Here is an easy guide to help you:

1. Get your ratchet lever hoist and wire grip ready. Use shackles if you need them.
2. Pull the strap hoist until the cable matches the end spot.
3. Tighten the strap a little more. This keeps tension after you take off the hoist. Do not go past the tension limit from the maker.
4. Take the mooring hook off the clamp. Put the hook at the support spot and fix it inside the clamp body.
5. Take out the wedge from the clamp. Put the cable inside the clamp, then put the wedge back in.
6. Use the lever hoist handle or drum knob to let the tension out slowly.
7. Make sure the cable is tight and does not move.

Tip: Always use the right tools and follow the instructions from the maker for your clamp.

Best Practices

You can help your installation last longer and work better by using these best tips:

• Pick the right clamp for your cable and area.
• Check all parts before you start. Look for damage or rust.
• Clean the conductor before you put it in.
• Handle all parts gently so you do not bend or scratch them.
• Check the alignment and tension when you finish.
• Follow the maker’s guide step by step.
• Plan regular checks and maintenance.
• Only use clamps in places the maker says are okay.

Note: Utility companies teach workers to wear safety gear and follow safe steps. Training covers tension, sag, and hardware checks.

Common Mistakes

Problems can happen if you skip steps or use the wrong way. Here is a table of common mistakes, what can go wrong, and how to fix them:

If you install Dead End Clamps the wrong way, cables can slip, things can break, and people can get hurt. Careful work keeps power lines safe and strong.

Issues and Solutions

Common Problems

Dead end clamps can have many problems. These problems can make power lines unsafe. Some issues happen during installation. You must put each part together carefully. Good materials cost more money at first. You need to check clamps often so they do not fail. If one part breaks, the clamp may not work. Extra metal parts can cause trouble with electricity. It is hard to manage heavy loads and stress. Strong winds and shaking can hurt the clamps. You might need special tools to put clamps on and line them up.

Tip: Check clamps often for rust, loose parts, or wear.

Maintenance and Troubleshooting

You can fix dead end clamp problems by following steps. First, look at the clamp. See if wires sag, parts break, or dirt builds up. Next, check for rust, loose bolts, or bad wires. Use tools to watch tension and temperature. Put problems into groups like mechanical, electrical, or environmental. Find out what caused the trouble, like too much tension or rust. Find the part that broke. Think about weather and how you used the clamp. Fix the problem by changing tension or replacing parts. Make sure everything is safe. Change your maintenance plan so problems do not come back. Teach your team to find and fix these issues. Test and check repairs to see if the clamp works. Write down what you found, fixed, and tested.

Ensuring Continued Function

You can help clamps last longer by taking care of them. Here are some steps you can use. Look at clamps often for damage, rust, or loose bolts. Put oil on bolts and hinges so they do not wear out. Install clamps the right way by following instructions. Use covers to keep clamps safe from bad weather.

Pick materials like aluminum, galvanized steel, copper, or stainless steel. These materials are strong and do not rust easily. If you care for clamps and use good materials, power lines stay safe and work well.

Dead End Clamps help power lines stay safe and strong. Good materials stop rust and damage from weather. These clamps protect wires from shaking and keep them tight. This helps stop power outages.

• Good clamps mean you spend less on fixing things later.
• Putting clamps on the right way and checking them often makes lines safer.
• Buying many clamps at once saves money, and long warranties are helpful.

Remember, picking the right clamps and taking care of them keeps power safe.

FAQ

What is the main job of a dead end clamp?

You use a dead end clamp to hold and anchor power line wires. This keeps the wires tight and safe. The clamp stops wires from moving or sagging.

How do you know which dead end clamp to use?

You should check the type of wire, the weather, and the tension needed. Read the manufacturer’s guide. Pick a clamp that matches your project and safety needs.

Can you reuse dead end clamps?

You should not reuse most dead end clamps. The clamp may not grip as well after you remove it. Always check the manufacturer’s instructions before reusing any clamp.

How often should you check dead end clamps?

• Check clamps at least once a year.
• Look for rust, loose bolts, or damage.
• Fix or replace any bad parts right away.

What happens if a dead end clamp fails?

If a dead end clamp fails, wires can sag or fall. This can cause power outages or accidents. You must fix or replace broken clamps quickly to keep the power line safe.
