Dead End Clamp vs Suspension Clamp: Key Differences

When you look at hardware for overhead power lines, you see two main types of clamps: dead end clamps and suspension clamps. The main difference comes from how each clamp works. Dead End Clamp anchors conductors at the end of a line or at sharp turns. Suspension clamps hold up conductors and let them move. Understanding these differences helps you make safe and reliable choices for your projects.

• Suspension clamps support wires and allow movement, which keeps tension balanced and helps with changes in weather.
• Dead end clamps anchor wires at the end or at angles, making sure the force transfers safely to the pole or tower.
• Knowing which clamp to use keeps your power lines safe and working for a long time.

Key Takeaways

• Dead end clamps hold wires tightly at the ends or turns. They keep wires safe in places with a lot of stress.
• Suspension clamps hold up wires along the line. They let wires move a little when the weather changes.
• Picking the right clamp is very important for safety and how long things last. You should think about where you use it, how much weight it holds, and the weather.
• Both clamp types are made to be easy to put on. You do not need special tools, so you save time and work.
• Using the right clamp keeps power lines strong. It helps them work well in different weather.

Key Differences

Overview Table

This table shows how dead end clamps and suspension clamps are different. It helps you see what each clamp does and where you use them. You can also compare how they handle stress.

Main Distinctions

When picking a clamp, think about what it needs to do.
Dead end clamps keep wires tight at the end or at turns. Use them when wires need to stay still, like in windy places or where there is a lot of weight.
Suspension clamps hold wires along the line. Use them when wires need to move a little, like when it gets hot or cold, or when things shake.

Experts say dead end clamps help wires stay strong in tough places. Suspension clamps are better when wires need to stretch or shrink.

Here are the main things to remember:

• Dead end clamps keep wires tight at ends or turns.
• Suspension clamps hold wires up and let them move when the weather changes or things shake.
• Use dead end clamps for strength. Use suspension clamps for support and movement.

Dead End Clamp Explained

Definition & Function

You use a Dead End Clamp when you need to hold a wire or conductor tightly in place. This clamp works as an anchor in overhead line systems. It gives you a strong and stable point at the end of a line, at sharp turns, or in high-tension areas.

• A Dead End Clamp holds wires securely.
• It serves as a temporary support in overhead power lines.
• You rely on it to keep power transmission and distribution safe.

Features & Design

You can spot a Dead End Clamp by its special design. It uses spiral-shaped rods that grip the wire evenly. This design spreads force along the wire, so you do not get weak spots. You do not need tools to install most Dead End Clamps, which saves you time. The clamp resists weather, corrosion, and vibration. It works with many types of wires, such as AAC, AAAC, ACSR, and ADSS cables. The table below shows the main features:

Common Uses

You find Dead End Clamps in many industries. They secure wires in power transmission and distribution networks. You also see them in telecommunications. These clamps must meet strict requirements. They need to fit different wire types, handle strong forces, and resist bad weather. They must also pass industry tests for safety and quality.

• Used in power transmission and distribution systems.
• Employed in telecommunications.
• Must meet requirements like strength ratings, weather resistance, and industry standards.

When you use a Dead End Clamp, you need to know it meets international standards. These include:

• Tensile tests to check strength.
• Slip tests to make sure wires do not slide.
• Bolt tightening tests for safe connections.
• Galvanizing tests for rust protection.
• Routine tests for clamps with cast or welded parts.

You can trust a Dead End Clamp to keep your wires safe and steady, even in tough conditions.

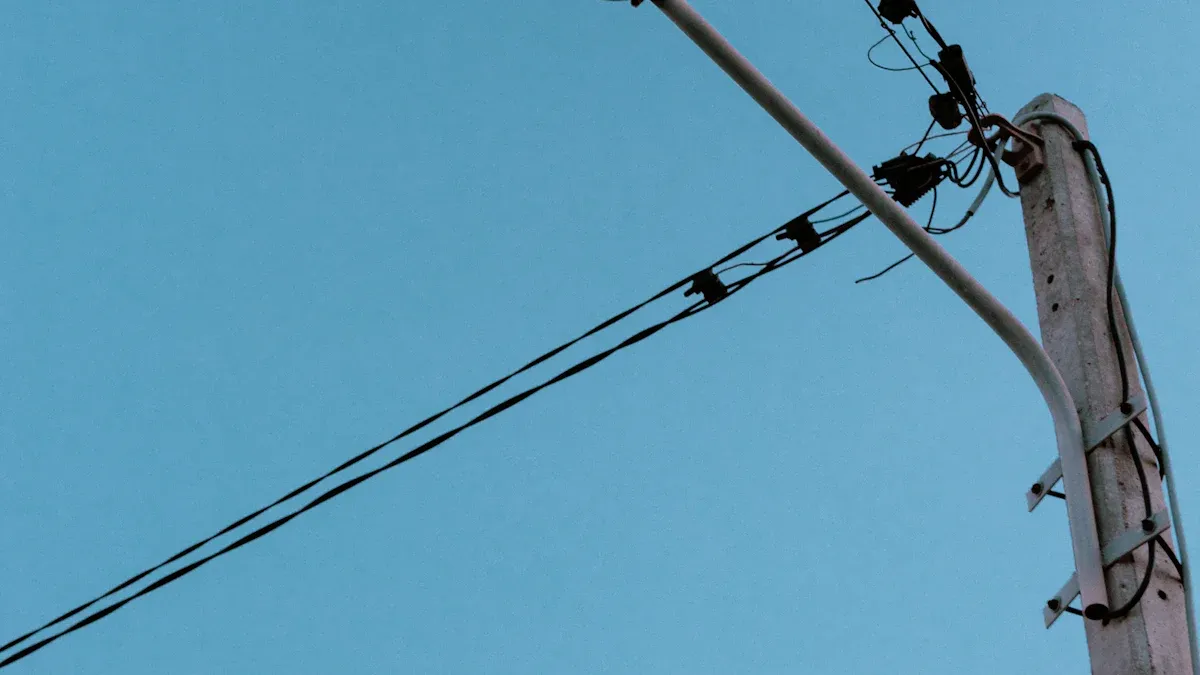

Suspension Clamp Overview

Definition & Function

A suspension clamp helps hold up wires on poles and towers. This clamp hangs wires from insulators or fittings. It keeps wires steady and stops them from drooping too much. Suspension clamps make sure wires stay at the right height. They help keep electrical systems safe and working well.

Here is a table that shows the main ideas:

Features & Design

Suspension clamps have special parts that help them hold wires and let them move a bit. The design lets the clamp work with angles from 30 to 60 degrees. Most suspension clamps are easy to put in and do not need tools. The clamp keeps the cable safe from harm. It also helps wires deal with shaking from wind or trains.

Industry rules say suspension clamps must pass hard tests. These tests check if the clamp can handle shaking, bumps, and tough weather. Some big rules are DEF STAN 00-35, IEEE 693, and IEC 60068-2-6. These rules make sure suspension clamps work safely everywhere.

Here is a table of important features:

Common Uses

You see suspension clamps in lots of projects. They hold up wires in overhead power lines and keep wires safe when being put in. These clamps control how much wires move when wind blows or trains go by. You find them in high-voltage lines, city power networks, and green energy projects. Suspension clamps also hold up wires for electric trains.

Here are some common ways to use them:

• Holding big wires over long spaces in high-voltage lines.
• Making sure power works well in cities and busy places.
• Connecting solar, wind, and water power plants to the grid.
• Holding up wires for electric trains in railways.

Suspension clamps help keep wires safe and steady in many places.

Comparison

Function & Purpose

Clamps help keep wires safe and working right. Dead End Clamp holds wires tight at the end or at sharp turns. This clamp stops wires from slipping out of place. Suspension clamps hold wires up along the line. These clamps let wires move a little bit. This helps when the weather changes or when wind shakes the wires. You pick the clamp you need for strong holding or for some movement.

Load & Support

Clamps handle different amounts of weight. Dead End Clamp grips wires very tightly. It keeps wires from moving, even if something pulls hard. Suspension clamps hold up the wires and lower shaking from wind or trains. Suspension clamps spread the weight over a bigger area. This helps wires last longer. Both types use strong stuff to handle stress.

Installation

You put clamps in different spots. Dead End Clamp goes at the end or where the wire turns. You can put it on by hand and do not need tools. Suspension clamps go in the middle or at support places. These clamps are also quick to put on and do not need special tools. Both types save you time and work.

Where you put the clamp and the weather matter a lot. Engineers check how much weight the pole and wind can handle. This makes sure the clamp stays strong in different weather.

Environmental Performance

Clamps have to deal with tough weather. You want clamps that do not rust, get too hot, or shake loose. Here is a table that shows how the materials help:

Clamps have high strength and grip that is more than 95% CUTS. They use materials that do not let weather hurt them. Clamps do not rust and fight off damage from electricity. These things help wires stay safe and last longer.

Applications

Dead End Clamp in Industry

Dead End Clamp is used in many places. It anchors and holds wires where safety is important. You see it on electrical lines, where it keeps wires in place. In phone and internet systems, it ends and secures cables. It also works on overhead transmission lines for strong connections. Railways use Dead End Clamp to hold wires for electric trains. Utility poles need this clamp to finish cables. It helps with guy wire jobs that support buildings. Solar and wind farms use Dead End Clamp to keep cables safe and connected to the grid.

1. Distribution lines – keep wires anchored at key spots.
2. Telecommunications – end and secure phone and internet cables.
3. Overhead transmission lines – make strong wire connections.
4. Railway electrification – anchor wires for electric trains.
5. Utility poles – finish and hold cables.
6. Guy wire applications – help support structures.
7. Renewable energy installations – keep cables safe from solar and wind sites.

Suspension Clamp in Industry

Suspension clamps help hold and support wires in many places. They keep wires tight in overhead transmission lines. In substations, they hold wires to buildings for safety. You use them to attach wires to towers and poles. Fiber optic networks need these clamps to hang cables. They also bundle cables and keep them spaced right. Power networks use suspension clamps to stop wires from sagging and keep electricity working well.

• Overhead transmission lines: hold and support wires.
• Substations: keep wires safe and steady.
• Pole attachments: connect wires to towers and poles.
• Fiber optic cable suspension: hang communication cables.
• Cable bundling: keep cables spaced and lined up.
• Distribution networks: stop wires from sagging and keep power strong.

Real-World Examples

You find these clamps in big building projects. The table below shows how they work in real life:

Tip: When picking a clamp, think about what your project needs and the weather. This helps you choose the best clamp for safety and long-lasting use.

Choosing the Right Clamp

Decision Factors

When you choose between a dead end clamp and a suspension clamp, you need to think about a few important things. Picking the right clamp helps your project stay safe and last longer.

• Application suitability: Each clamp works best for certain jobs. Dead end clamps anchor wires at the end or at turns. Suspension clamps support wires along the line and let them move a little.
• Load-bearing capacity: You must check how much weight the clamp can hold. This keeps wires from falling or breaking, especially in power lines.
• Material considerations: The material of the clamp matters a lot. High-strength aluminum or steel alloys give you a good mix of strength and lightness. The right material helps your clamp last longer.
• Environmental conditions: Weather and location affect your choice. Some clamps work better in rain, snow, or salty air.

Tip: Always match the clamp to the job and the weather where you will use it.

Mistakes to Avoid

You can make mistakes if you do not pay attention during installation. Here are some common errors and how to avoid them:

• Do not put a clamp on a damaged part of the cable. This weakens the hold and can cause failure.
• Make sure you install the clamp in the right direction. The wrong way can make the clamp slip or not work.
• Never bend the cable more than its minimum bending radius. Sharp bends can damage the cable and reduce its life.

Note: Careful installation keeps your system safe and working well.

Expert Tips

Experts share these tips to help you get the best results:

• Pick clamps with coatings like galvanization for high resistance to rust, especially near the sea.
• Choose steel clamps with special coatings for long life in tough places. Aluminum zinc alloy coatings work well in areas with strong chemicals.
• Check that your clamps meet standards like IEC, IEEE, or ASTM. Certified clamps give you better safety and less slippage.
• Use clamps with pre-torqued hardware. These save you time and make installation easier.

Remember: The right clamp and careful installation protect your wires and keep your system strong for years.

You have to pick the right clamp for your job. The table below shows how they are different:

Tension clamps keep wires tight and safe. They help power lines work well and stay strong.

If you are not sure, ask a manufacturer or expert. You should do this when:

• You have trouble with design or parts.
• You need a solution that can change.
• You want to make sure the specs are right.
• You are starting a new project.

Picking the right clamp helps your system stay safe and last longer.

FAQ

What is the main job of a dead end clamp?

You use a dead end clamp to anchor wires at the end of a line or at sharp turns. This clamp keeps wires tight and safe.

When should you pick a suspension clamp?

Pick a suspension clamp when you need to support wires along a line. This clamp lets wires move a little and helps them handle wind or temperature changes.

Can you install these clamps without special tools?

Most dead end clamps and suspension clamps let you install them by hand. You do not need special tools for most jobs.

Do these clamps work in bad weather?

Yes! Both clamp types use strong materials that resist rust, heat, and shaking. You can trust them in rain, snow, or strong wind.

How do you know which clamp to use?

Check your project needs. Use dead end clamps for tight anchoring. Use suspension clamps for support and movement. Ask an expert if you feel unsure.
