Advantages and disadvantages of suspension type insulator

You will see that suspension type insulators have both advantages and disadvantages. Many experts discuss the advantages of insulator, such as strong mechanical strength, excellent electrical insulation, long service life, low maintenance requirements, and versatility. However, it is also important to consider the drawbacks, including high initial costs, susceptibility to pollution, and the risk of flashover. The table below summarizes these points based on recent reports:

Understanding these factors is essential when selecting insulators for power lines or trains.

Key Takeaways

• Suspension type insulators are very strong. They also stop electricity from leaking. This makes them good for high-voltage use.
• It is important to check them often. This helps stop dirt and damage. If not, power can go out.
• They cost more at first. But they last a long time. They are easy to fix. This saves money later.
• Their design is flexible. They can fit many places. They work well in cities, near the sea, and in bad weather.
• You must install and plan them the right way. This stops them from moving too much. If they move, it can be dangerous.

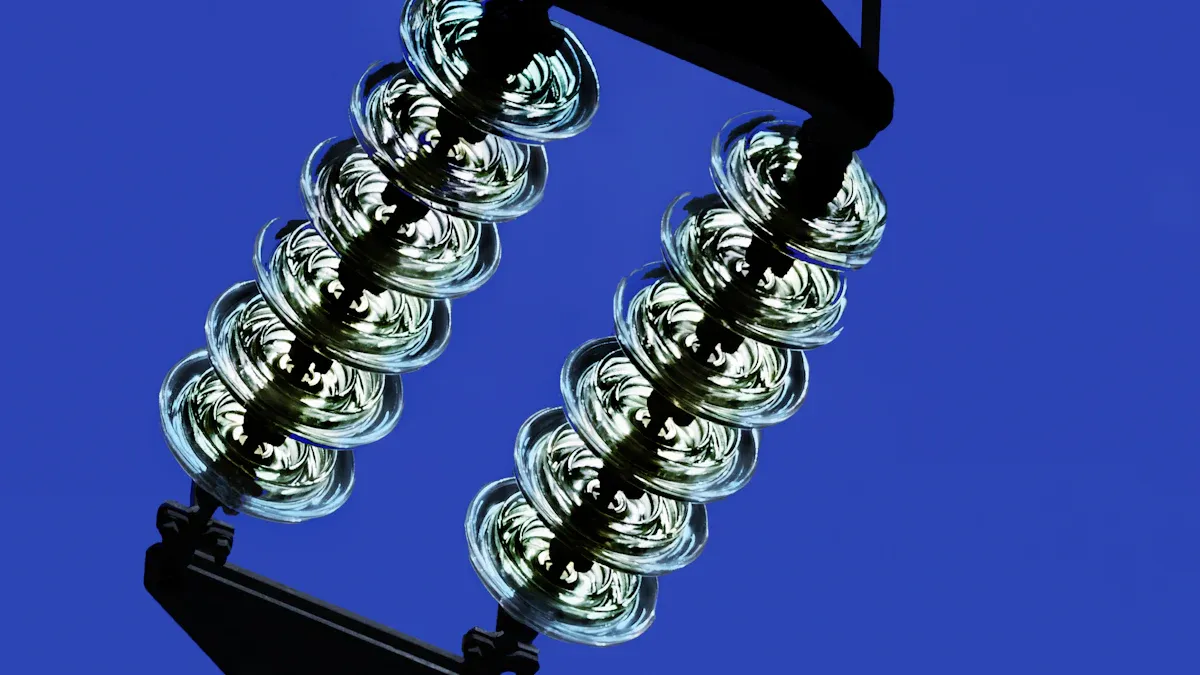

Suspension Type Insulator Overview

What Is a Suspension Insulator

You can see suspension type insulators on power lines. These insulators help keep electricity safe on the wires. Most are made from porcelain. They look like a row of discs hanging from a tower. Each disc connects to the next with strong metal parts. The bottom disc holds the conductor. The top disc attaches to the cross-arm on the tower. This setup works well for high voltages, over 33KV. Pin type insulators cannot handle such high voltages. They would be too big and heavy. Suspension insulators fix this problem. You can add more discs to handle higher voltages. This makes them useful for modern power systems.

The main parts are:

• Cross-arms: These hold the insulators and connect to the tower.
• Disc insulators: These hang in a row, joined by metal pieces.

The conductor hangs from the lowest disc. The top part stays fixed to the cross-arm. This keeps the line safe and away from the tower.

Tip: You can spot suspension insulators by looking for a chain of discs on towers.

Typical Applications

You can find suspension type insulators in many places. Power companies use them on high-voltage lines. Engineers pick them for voltages over 33KV. They work better than pin or post insulators at these levels. You also see them in railway power systems. These insulators help keep wires safe and steady. Some factories use them in big electrical setups.

Manufacturers use different materials for these insulators. Here is a simple comparison:

You can pick the best material for your needs. Glass and porcelain are good for most outdoor jobs. Polymer insulators are lighter and easy to use where weight is important.

Advantages of Insulator in Suspension Type

Electrical and Mechanical Performance

Suspension type insulators are known for strong electrical and mechanical performance. They help keep high-voltage lines safe. You can stack more discs to handle higher voltages. This lets you control safety and reliability better. Here are some key points:

• Suspension insulators are good for high-voltage lines because you can add more units for extra insulation.
• Each disc adds more insulation, so you can match different voltages.
• Post insulators work for medium to high voltages, but suspension types are better for very high voltages.

These insulators give both electrical insulation and mechanical support. The design keeps wires safe from the tower. It also holds up the weight of the conductors. This is a main advantage of insulator in suspension type.

Flexibility and Adaptability

Suspension type insulators are flexible and easy to adapt. The modular design lets you connect many units in a row. You can change the length and strength for each job. If one disc breaks, the others still work. This keeps your system safe. The string can swing, which helps with wind or heavy loads.

Here is a table that shows how this flexibility helps in real life:

You can use suspension insulators in many places. They work well in cities with little space. They are good in coastal areas with lots of moisture. They also work in places with very hot or cold weather. The table below shows how these insulators fit different conditions:

This adaptability is a big advantage of insulator in suspension type. It helps when you need to put lines in hard places.

Lightweight and Impact Resistance

Many suspension type insulators use lightweight materials like polymers. This makes them easier to carry and install. It helps a lot on tall towers or in railway systems. The lighter weight puts less strain on the supports.

Another advantage of insulator in suspension type is impact resistance. Tests show these insulators can take hits from mistakes during handling. They can survive cuts, tears, or bumps. The Thermal-Mechanical test checks if they last a long time. This means they work well even in tough places.

• Suspension insulators pass impact tests, so they can handle rough treatment during installation.
• The design protects the system from sudden shocks or stress.

You can count on these insulators to last a long time. This lowers maintenance costs and makes things safer.

Noise and Vibration Reduction

Suspension type insulators help reduce noise and vibration in railways and power lines. When trains move or wind shakes wires, vibrations can spread. These insulators absorb the movement. This makes rides smoother and the area quieter.

Studies show these insulators can cut the force between wheels and rails by over 40%. This means less noise and less damage to tracks. Special noise control tools, like rubber slabs or sound absorbers, can lower noise by up to 7 dB(A) with suspension insulators.

Tip: If you want less noise and more comfort in trains, suspension type insulators are a good choice.

All these points show why the advantages of insulator in suspension type are important. They give strong performance, flexibility, light weight, impact resistance, and better comfort for people nearby.

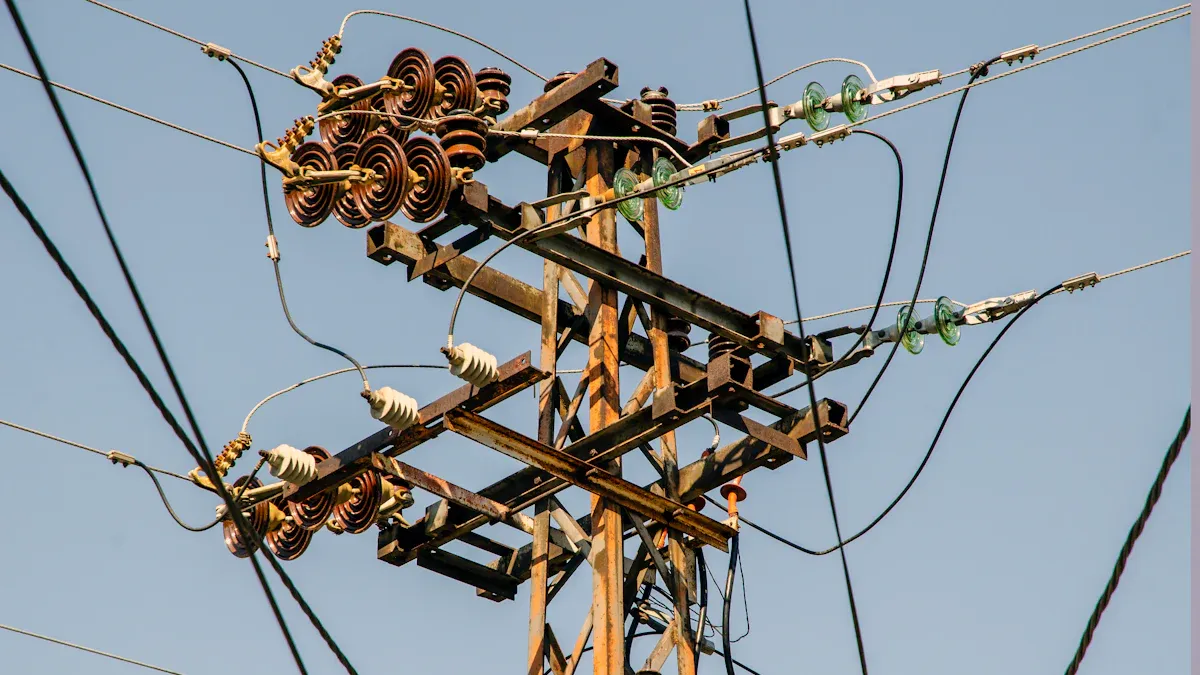

Disadvantages of Suspension Type Insulator

Maintenance Requirements

You have to take care of suspension type insulators. They last a long time, but problems can still happen. Dirt, pollution, and weather can hurt how they work. Glass insulators might get cracks or chips. Ceramic ones often get dirty or break. Composite insulators can get damaged by UV rays or pollution. Each type needs its own way to get cleaned. The table below shows the usual problems and how to clean them:

You should check these insulators often, especially in dirty or rough weather places. If you do not clean or fix them, you could have power failures or safety problems.

Note: Checking and cleaning often helps stop bigger problems and keeps your system safe.

Cost Considerations

Suspension type insulators can cost more than pin or post insulators. Many things can make the price go up:

• Material and quality: Porcelain, glass, and composite polymers all cost different amounts because of what they are made of and how long they last.
• Size and design: Bigger or more complex insulators need more stuff and careful work, so they cost more.
• New technology: Extra features can help insulators work better, but they also make them more expensive.
• Market demand: If more people want these insulators, the price can go up.
• Rules and standards: Meeting safety and quality rules can make insulators cost more.

You might pay more at first for suspension type insulators, but they can save money later because they last longer and do not need to be replaced as much. Still, you should look at the total cost and compare with other types before you decide.

Movement and Swing Issues

Suspension type insulators can move and swing when it is windy or during storms. This movement can cause trouble. If the insulator swings too much, it might touch other parts or lose balance. This can cause flashover, which is when electricity jumps across the insulator and causes power outages. Ice can make this worse. Ice changes the shape and weight of the wires, so the insulator swings even more. You need to know about these risks to keep power lines safe.

Power companies try to control these problems by managing loads during setup and maintenance. They do not let short-term loads decide how strong the structure should be. Some companies make towers stronger for extra loads, but most focus on careful stringing and load control. This helps stop too much movement and keeps the system working well.

Tip: Good planning and regular checks can lower the risk of swing problems.

Installation Complexity

It takes more time and skill to put up suspension type insulators than other types. Each string has many discs, and you have to connect them one by one. You must make sure every disc is in the right spot and joined tightly. If you make a mistake, the whole string might not work right. This can slow down the job.

You also need special tools and trained workers for this work. In places with tall towers or hard-to-reach spots, the job gets even harder. Pin or post insulators are easier and faster to install.

Alert: Always use trained workers and follow safety steps to stop mistakes during installation.

You should think about these disadvantages and compare them with the advantages of insulator in suspension type. This helps you pick the best choice for your project.

Practical Selection Factors

Comparing Insulator Types

When you pick an insulator, you should think about some key things. Here is a simple list to help you compare suspension, pin, and post insulators:

1. First, check the voltage your project needs. Use post or suspension insulators for high voltages.
2. Pick a material that can handle your local weather and pollution.
3. Think about how strong the insulator needs to be. Look at wind, ice, and how much the wires pull.
4. In dirty or polluted places, pillar insulators often work well.
5. Make sure the insulator gives good insulation.
6. Choose a brand that people trust for quality.
7. Compare prices and see if the insulator fits your needs.
8. Look for good help and support from the company.

This list helps you see the good and bad points for your job.

Suitability for High Voltage and Railways

Suspension type insulators are best for high voltage lines, especially over 33 kV. You often see them in railway power systems. These insulators use a string of porcelain discs. If one disc breaks, you can just change that disc. You do not need to replace the whole string. This makes fixing them easier than solid core insulators. Solid core types are strong but not as flexible. Suspension insulators also help with wire movement, which is important for railways. You get safety and easy repairs, which are big advantages in these systems.

Lifecycle and Maintenance Costs

You want to know how long your insulator will last and what it costs to keep it working. Suspension type insulators usually last 20 to 30 years. How long they last depends on weather, pollution, and how well you take care of them. When you look at maintenance costs, you will see a big difference:

With suspension insulators, you only change the broken disc, not the whole string. This saves money over time. Pin and post insulators often need full replacement if damaged, which costs more. If you want lower costs and easy repairs, suspension insulators are a smart choice.

Suspension type insulators are flexible and easy to take care of. They are strong and work well on high voltage lines. They can handle bad weather too. But they cost more money and need more space. Putting them up is also harder and takes more time.

When picking an insulator, think about what your system needs. You should also look at the price, how to keep it working, and what your setup needs. Choosing carefully helps your system stay safe and work well.

FAQ

What is the main job of a suspension type insulator?

A suspension type insulator keeps high-voltage wires safe. It stops electricity from escaping to the tower. It also holds the wires up and keeps them in place.

Why do engineers choose suspension insulators for high voltage lines?

Engineers like suspension insulators because you can add more discs for higher voltage. They give strong insulation and good support. You can also change one disc if it breaks.

How often should you check and clean suspension type insulators?

You should check and clean these insulators at least once every year. If there is a lot of dirt or pollution, you may need to clean them more often to keep them working well.

Can you use suspension type insulators in railways?

Yes, suspension type insulators work in railways. They help lower noise and stop shaking. They also keep wires safe and make train rides smoother.

What materials can you find in suspension type insulators?

Suspension type insulators can be made of glass, porcelain, or polymer. Each material has its own strengths. Polymer is light and easy to put up. Porcelain and glass are good for outdoor use.
